Si3N4 industrial ceramic heater tube for heater protection

FOB Reference Price:Get Latest Price
US $699-2,199 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Type:
Ceramic Tubes, Si3N4 industrial ceramic heater tube for heater protection
Application:
Structure Ceramic
Material:
Alumina Ceramic
Model Number:
KX-01
Brand Name:
KAIXIN
Si3N4 content:
99%
Density:
3.18g/cm3
Apparent Stomatal Rate(%):
<1
Rockwell Hardness(HRA):
93
Flexural Strength(Mpa):
750(20℃),485(1400℃)
Max.Use Temperature in Air(℃):
1400
Elasticity Modulus(Gpa):
320
Fracture Toughness:
7
Thermal Conductivity[W/(m.K):
25
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton packing as per the characteristic of our products;
If there's special demands, we will respect your suggestion.
Port
yantian
Product Description


Si3N4 industrial ceramic heater tube for heater protection

radiant tubes are designed to provide significantly longer service life in hostile and high temperature industrial heating environments.They are used worldwide in a broad range of applications, and are ISO 9001 certified.



Features and Benefits

1.Corrosion resistance,and non-immersion with molten metal

2.The thermal shock resistance and not falling, not burst

3.Extremely low coefficient of thermal expansion

4.Anti-oxidation,Long life >12 months

5. High temperature resistance up to 1,300°C

6.No preheating required at operation temperatures below 900°C

7.Could made according to customers’ specification

 Drawing----sialon heater tube

1

Performance -----sialon heater tube

Performance

General

Our product

Purity

>99.8

>99

Density (g/cm3 )

>1.91-1.95

3.18

Apparent porosity(%)

<15

<1

Cold crushing strength

>50

>1200

Highest use temperature in air (℃)

1650

1400

Highest use temperature in protective atmosphere(℃)

1650

1800

Cold bending strength (MPa)

>25

750

High temperature bending strength(MPa)

>28

485(1400℃)

Standard Sizes-----sialon heater tube

Outside diameter without flange (mm)

Inside Diameter (mm)

Max. Length (mm)

80

60

1200

90

70

1200

110

90

1200

125

105

1200

130

110

1200


With circumferential flat bottomed or hemispherical groove on request.

Other sizes and groove designs available on request.


We offer full ceramic and steel flange systems in both standard and
custom sizes in order to provide the best adaptation to your furnace
configuration.

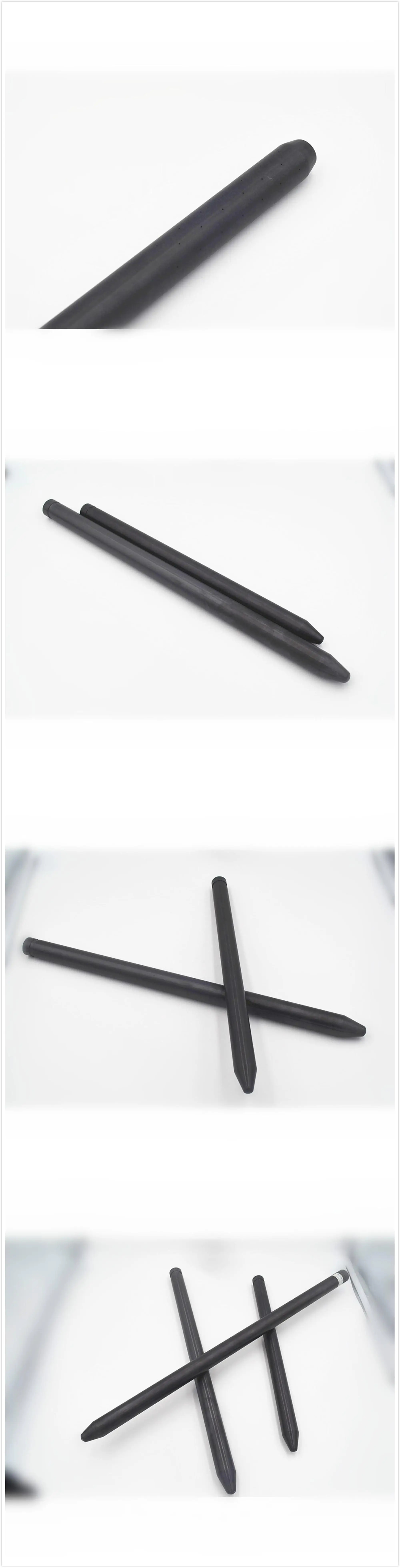

Detailed Images




IMG_4844.JPGIMG_4846.JPGIMG_4831.JPGIMG_5101



Related Products


Advantages

1)Kaixin advanced ceramic products are manufactured at ISO 9001 certified facilities. Our manufacturing processes are optimized for quality, efficiency and consistency  helping ensure reliable and repeatable product performance.



2)Comparative table of thermal properties

.png



 Acceptable: + ; Good: ++ ; Very good: +++

These values are for information only and do not constitute a contractual obligation.

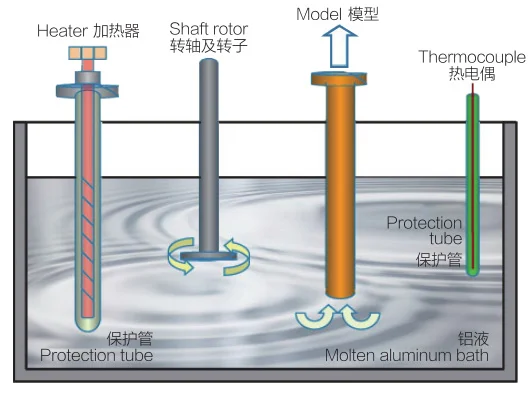

Application

Molten aluminum is processed at temperatures between 680°C and 800°C. Radiant heater tubes are used to keep melts on temperature. The tube material should have sufficient mechanical stability to withstand the stresses of operation. In addition, the material must be resistant to chemical attack by the melt, and must not contaminate the melt with loose particles.


Packaging & Shipping

 Packing:

We ensure to offer safe package and fast delivery for all our customers .

1.for big size cylinders : plastic pallet

2.for small size cylinders :polywood case with inner foam



Shipping :

1.By sea / By air / By courier (DHL, UPS, TNT, FEDEX, EMS express are available )

2.As customized requirements



Certifications

 1_

Company Information

Hengyang Kaixin established in June,2013, is specialized in designing and manufacturing of special ceramic material products.Our main product like Silicon nitride stalk,thermocouple protective tube,plunger,crucible,milling ball,industrial heating rod,radiant tube,electrode protection cover,which are widely used in military project,aerospace and navigation,smelt,chemical industry,electronics,medicine.



Through years of research and development and technology accumulation,the mature modern production line have been gradually established, to internationalize the high purity silicon nitride special ceramic materials as our own task,we give full play to the advantages of technology and repay the society with high quality products and satisfactory service.


In a policy of 'Careful Design, Sincere Service, International Level and Customer First', we provide high-quality products and services for the customers.We sincerely welcome friends at home or abroad to visit and seek mutual development.factory3R&D
