low thermal-expansion silicon nitride ceramic degassing rotor shaft/ring

FOB Reference Price:Get Latest Price
US $719-3,225 / Pieces | 1 Piece/Pieces (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: 3,000-5,000 square meters
  • No. of Production Lines: 6
Research & Design >
  • No.of R&D Engineer: 11 - 20 People
  • Production Certification: 1
  • Patent: 1
Trade Capacity >
  • Export Mode: Using an agent Have Own Export License
  • Export Percentage: 91% - 100%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Type:
Ceramic Rods, silicon nitride ceramic degassing rotor shaft/ring
Application:
Structure Ceramic
Brand Name:
KAIXIN
Si3N4 content:
99%
Density:
3.18g/cm3
Apparent Stomatal Rate(%):
<1
Rockwell Hardness(HRA):
93
Flexural Strength(Mpa):
750(20℃),485(1400℃)
Max.Use Temperature in Air(℃):
1400
Elasticity Modulus(Gpa):
320
Fracture Toughness:
7
Thermal Conductivity[W/(m.K):
25
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton packing as per the characteristic of our products;
If there's special demands, we will respect your suggestion.
Port
Express Courier/ Air/Ocean Freight Service

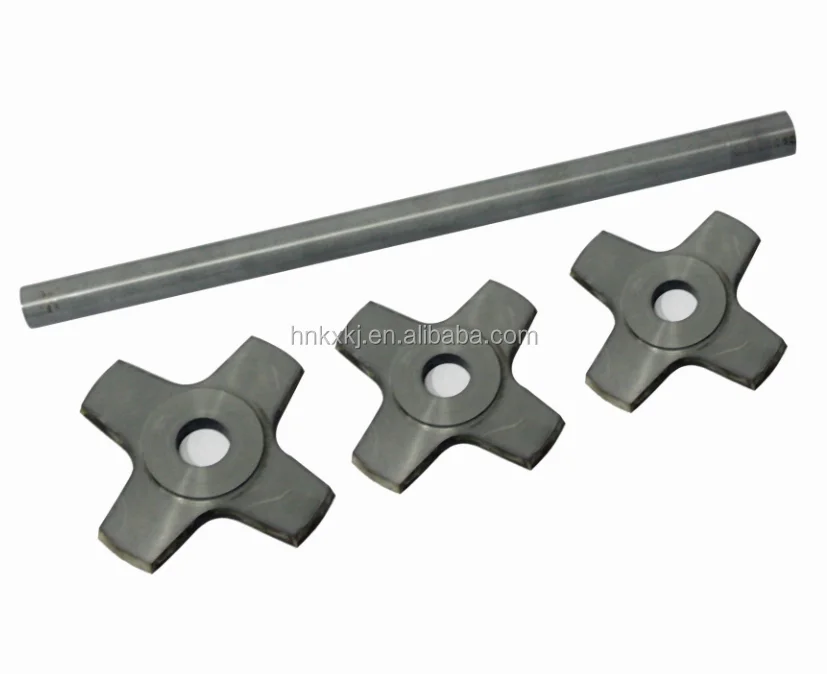

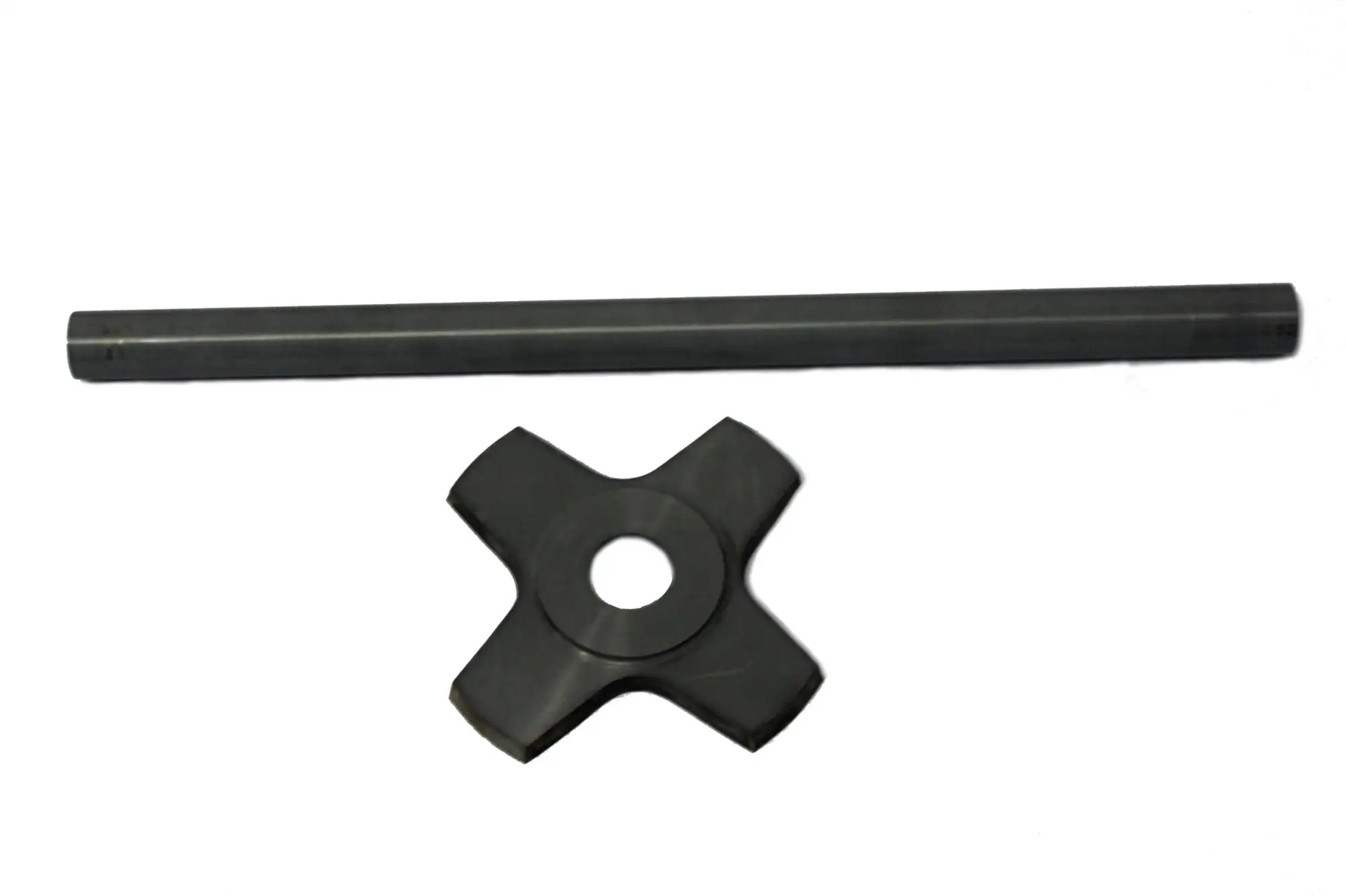

low thermal-expansion silicon nitride ceramic degassing rotor shaft/ring



Kaixin silicone nitride degassing rotor is designed for excellent performance including easily replaceable and repairable separated shaft and impeller, good washing resistance of molten aluminum, high oxidation resistance, high-speed and efficient dispersal and removal of hydrogen and other unwanted particles, long service time



1.High temperature resistance,corrosion resistance;
2.The thermal shock resistance and not falling, not burst;
3.Extremely low coefficient of thermal expansion;
4.Anti-oxidation,long service time;

5.Could made according to customers’ specification.

Main Use Range:Low pressure casting industry

Technic Data


Performance

Performance

General

Our product

Purity

>99.8

>99

Density (g/cm3 )

>1.91-1.95

3.18

Apparent porosity(%)

<15

<1

Cold crushing strength

>50

>1200

Highest use temperature in air (℃)

1650

1400

Highest use temperature in protective atmosphere(℃)

1650

1800

Cold bending strength (MPa)

>25

750

High temperature bending strength(MPa)

>28

485(1400℃)

Standard Sizes

Outside diameter without flange (mm)

Inside Diameter (mm)

Max. Length (mm)

80

60

1200

90

70

1200

110

90

1200

125

105

1200

130

110

1200


With circumferential flat bottomed or hemispherical groove on request.

Other sizes and groove designs available on request.


We offer full ceramic and steel flange systems in both standard and
custom sizes in order to provide the best adaptation to your furnace
configuration.



Comparative table of thermal properties



 Acceptable: + ; Good: ++ ; Very good: +++

These values are for information only and do not constitute a contractual obligation.



Application

Molten aluminum is processed at temperatures between 680°C and 800°C. Radiant heater tubes are used to keep melts on temperature. The tube material should have sufficient mechanical stability to withstand the stresses of operation. In addition, the material must be resistant to chemical attack by the melt, and must not contaminate the melt with loose particles.



Packaging & Shipping





Shipping :

1.By sea / By air / By courier (DHL, UPS, TNT, FEDEX, EMS express are available )

2.As customized requirements



FAQ



Certifications



Company Information

The only 99% high purity silicon nitride manufacturer in China ---Hengyang Kaixin established in June,2013, is specialized in designing and manufacturing of silicon nitride ceramic products with 8 years experience and IS9001,SGS,ROHS passed ,the area of our factory is 5000 square meters and 50-100 staff ,In addition to the advanced facilities and equipment,there are 10-20 people in the r&d department

Our main product like riser tube ,thermocouple protective tube,radiant tube,plunger,heating rod,electrode protection cover,which are widely used in military project,aerospace and navigation,smelt,chemical industry,electronics,medicine.

The OEM and R & D are available, We warmly welcome further inquiries from overseas customers.
