Si3N4 Silicon nitride ceramic electric heating element/glow ceramic ignitor heating element

FOB Reference Price:Get Latest Price
US $5-50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Air Heater, ceramic electric heating element/glow ceramic ignitor heating element
Power Source:
Electric
Place of Origin:
Hunan, China (Mainland)
Brand Name:
KAIXIN
Dimension(L*W*H):
25X14X7CM
Weight:
0.2kg
Voltage:
110-220V, 220-240V
Power(W):
100-1000W
Certification:
ROHS
Warranty:
1 year
After-sales Service Provided:
Overseas service center available
Si3N4 content:
99%
Surface watts Density:
25W/cm2
Certicification:
CE,Rohs
Rockwell Hardness(HRA):
93
Flexural Strength(Mpa):
750(20℃),485(1400℃)
Max.Use Temperature in Air(℃):
1400
Elasticity Modulus(Gpa):
320
Length:
138mm,128mm,95mm
Thickness:
4mm
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton packing as per the characteristic of our products;
If there's special demands, we will respect your suggestion.
Port
Express Courier/ Air/Ocean Freight Service
Lead Time :
15 work days after confirm the deposit
Video Description

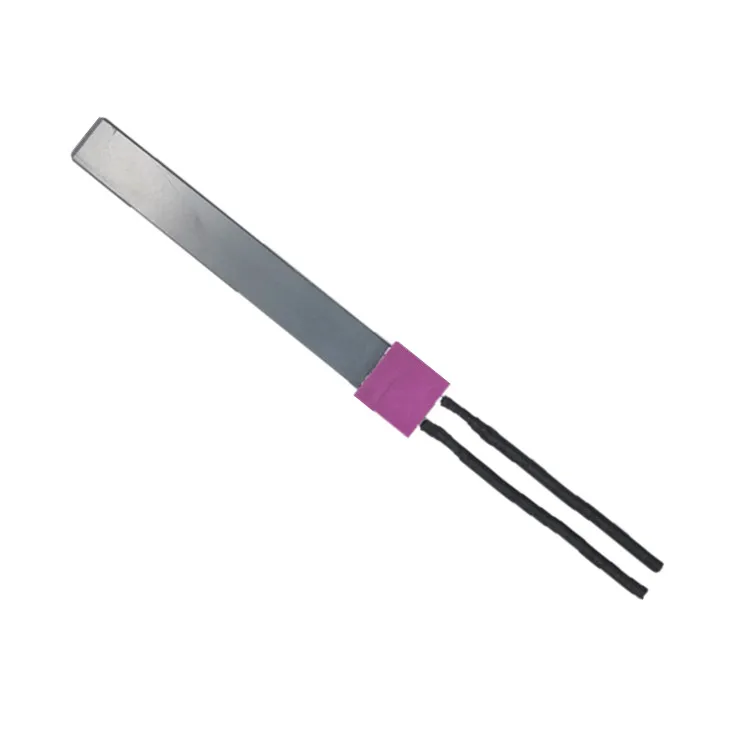

Si3N4 Silicon nitride ceramic electric heating element/glow ceramic ignitor heating element

Product Description



This product takes tungsten wire as heat source which is buried in silicon nitride (Si3N4) substrate, through hot-pressing forming, sintering, grinding, and welding wire, to obtain ignition component. Due to adopting silicon nitride ceramic (Si3N4) as heating substrate material, this ignition overcomes all the drawbacks that the metal sleeve electric plug possesses: no high temperature tolerance, short life and long warming up time, etc., and can be made into proper shapes to fit application requirements.DSC_0143_888754

789448_8888888

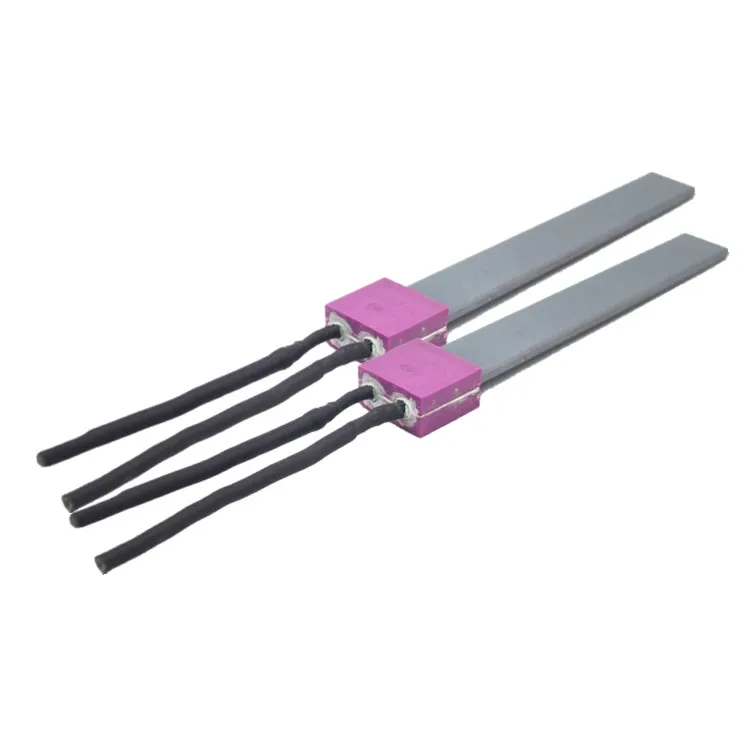

Detailed Images



heating element_Heat.jpg

Specifications

No.

Property & Specification&

Valuealue

1

Density (g/cm3)

3.2 - 3.4

2

Flexural Strength (MPa)

900

3

Fracture Toughness (MPa.m1/2)

6 - 8

4

Hardness (HRA)

92 -  94

5

Thermal Conductivity (W.m-1.K-1)

23 - 25

6

Coefficient of Thermal Expansion (K-1)

3.1 x 10-6

7

Electric Resistivity (Ω.cm)

1014

8

Specific Heat (J/(Kg.K))

640

9

Dielectric Constant

6 - 7





Advantages



Materials Comparison

 Acceptable: + ; Good: ++ ; Very good: +++

These values are for information only and do not constitute a contractual obligation.



3)For size ,With circumferential flat bottomed or hemispherical groove on request.

Other sizes and groove designs available on request.


We offer full ceramic and steel flange systems in both standard and
custom sizes in order to provide the best adaptation to your furnace
configuration.

Application

1.Ignition of solid fuels (e.g. wood pellets)
2.Ignition of gas or oil
3.Ignition of exhaust fumes
4.Heating of process gases
5.Pyrotechnics
6.Brazing machines
7. Heater for corrosive atmosphere
8.R&D - laboratory equipment, measuring and testing
equipment, reactors
9.Tool heating
10. Charcoal barbecue grill
